WireGuard Outbound NAT Rule

Networking & Firewalls
1

I’m struggling to access my VPN and have reason to believe it’s due to an improper Outbound NAT Rule as I’m getting spammed errors like this:
There were error(s) loading the rules: /tmp/rules.debug:56: macro 'WIREGUARD__NETWORK' not defined - The line in question reads [56]: nat on $WAN inet proto udp from $WIREGUARD__NETWORK to any -> 74.110.20.30/32 static-port @ 2025-05-14 18:16:36

Could someone with more knowledge on configuring WireGuard on pfSense help me out here? This is the rule I have set now and things are not working.

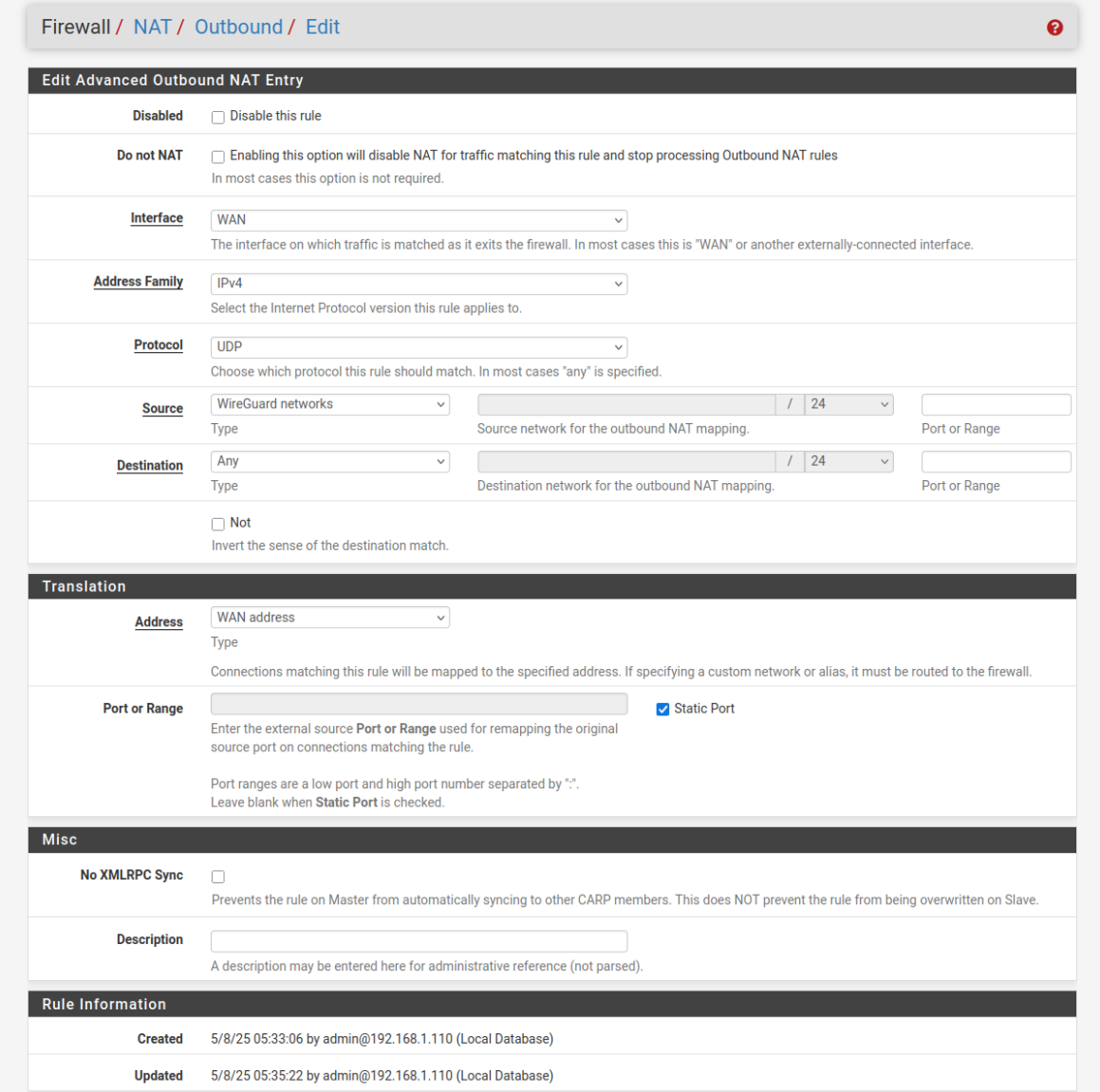

outbound-nat
outbound-nat1159×1151 213 KB

2

You are only allowing UDP in your protocol. Change it to Any.

Also uncheck Static Port in Translation.

3

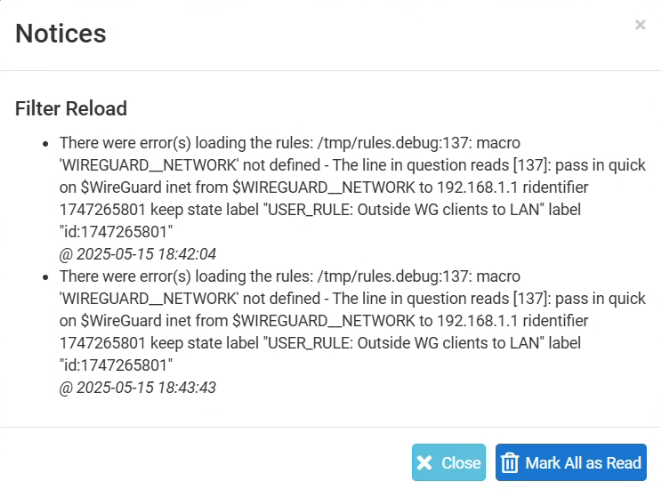

Thank you. I made those changes but am now getting the following errors?

image661×494 86.7 KB

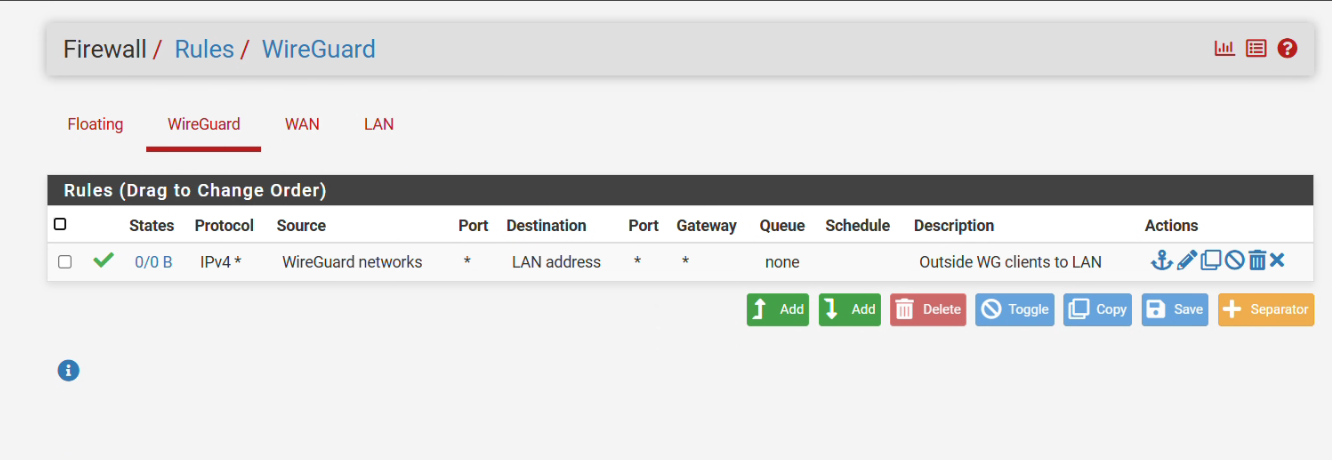

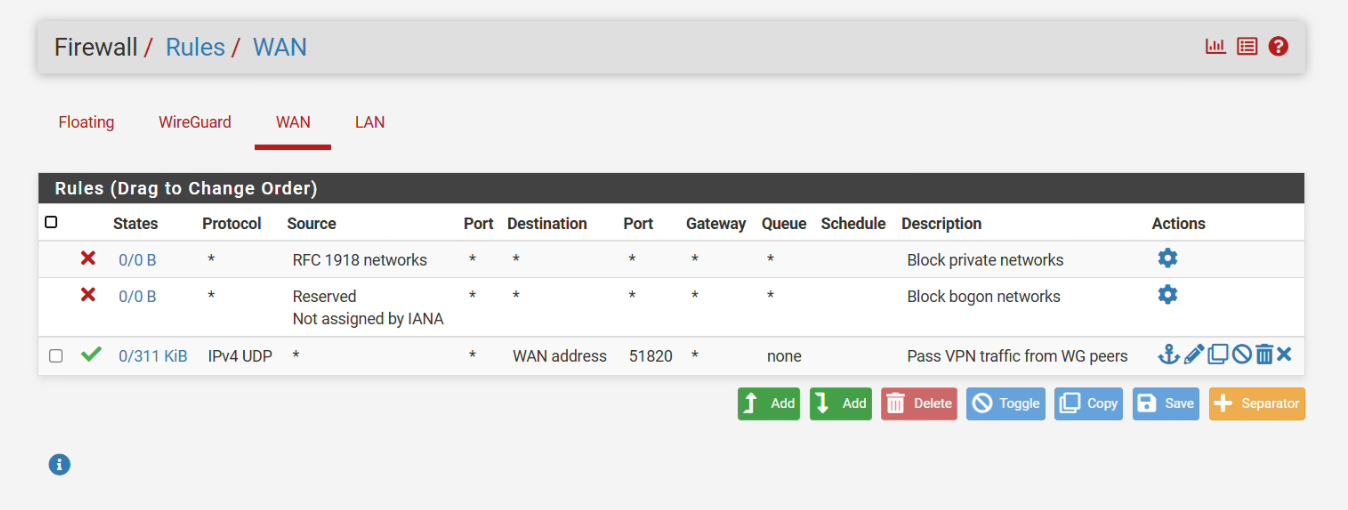

Here are my rules:

image1332×460 98.7 KB

image1348×510 124 KB

4

On your wireguard interface, change the source to any and set your destination to LAN subnet

5

Thank you! I’m now connecting to the VPN and can access the pfSense box remotely. I’m not sure what else is needed, but I can’t seem to access the internet once connected to the VPN?
