Voip.MS / FreePBX / pfSense

VoIP
1

Disclaimer: My previous experience has been with pfSense/FreePBX/SIP Station. It worked.

I’m trying to set up a new FreePBX server for a non-profit that I manage the IT needs for. They have a spare IP, so my plan was to configure pfSense to port forward to the freepbx appliance.

I’ve set up an outbound NAT:

Screen Shot 2020-10-22 at 4.00.01 PM
Screen Shot 2020-10-22 at 4.00.01 PM2288×112 12.7 KB

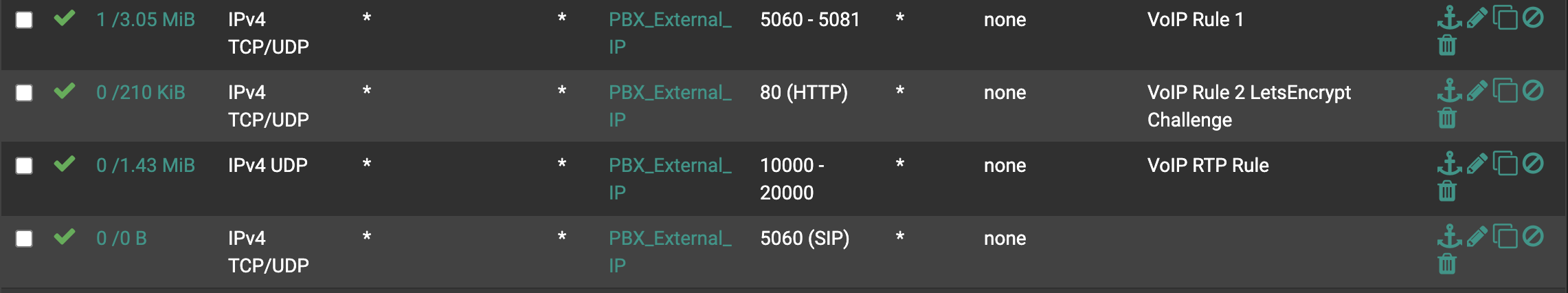

and the following WAN rules:

Screen Shot 2020-10-22 at 3.56.08 PM
Screen Shot 2020-10-22 at 3.56.08 PM2282×426 62.6 KB

However, while setting up the voip.ms trunk, it doesn’t appear to be making a contact to the sip server. I can ping it successfully from the freepbx console, so I’m guessing that I’ve either configured the trunk incorrectly (but I doubt this) or I’ve got a pfSense rule set up incorrectly (my current theory).

Am I making this too difficult? Suggestions? Troubleshooting advice?

2

Unless you are using some external sip phones, there is not any need to have extra rules in pfsense for FreePBX to connect to VoipMS.

1 Like
3

Is it also the case when using IP Authentication? I use VoIP.ms
