Using public IP-s over IPSEC

hannesk71 · August 11, 2023, 10:03am

Hi,

I have a bit silly question. I have 2 Opnsense firewall. One has 2 WAN connections (both having 5 public IPs) and another has WAN with 1 public IP (this number can’t be extended). Both FW-s are connected with IPSec and both LAN’s are visible to each other.

So my question is: can I do NAT from on of those 10 IPs to other LAN computer?

Any hints will be welcome…

Hannes

LTS_Tom · August 11, 2023, 10:13am

In pfsense they have documentation on doing policy routing over IPSEC
https://docs.netgate.com/pfsense/en/latest/vpn/ipsec/routed-vti.html

I assume you can do this OPNSense as well.

hannesk71 · August 11, 2023, 10:20am

Thanks, Tom
I have to do some minor adjustments to the configuration

hannesk71 · September 11, 2023, 3:33pm

Dear all,

I did the configuration changes. According to Wireshark the packets reach the proper server, but still I get time out
What I’m missing in my configuration?

Paul · September 11, 2023, 4:27pm

You are going to have to explain the settings on pfsense, as we have nothing to go on

Post screenshots

hannesk71 · September 12, 2023, 10:18am

There are two opnsense firewalls. Firewall A has 2 WAN connections and one LAN interface with subnet 192.168.10.0/24. Firewall B has one WAN and one LAN with subnet 192.168.3.0/24.
Between A and B is routed IPSEC tunnel, on both sides IPSEC interfaces, gateways and routing tables. Traffic from 192.168.10.0 to 192.168.3.0 works perfectly and vice versa. So there are no problems on those settings.

I create NAT:port Forward rules to Firewall A:

Destination is behind firewall B

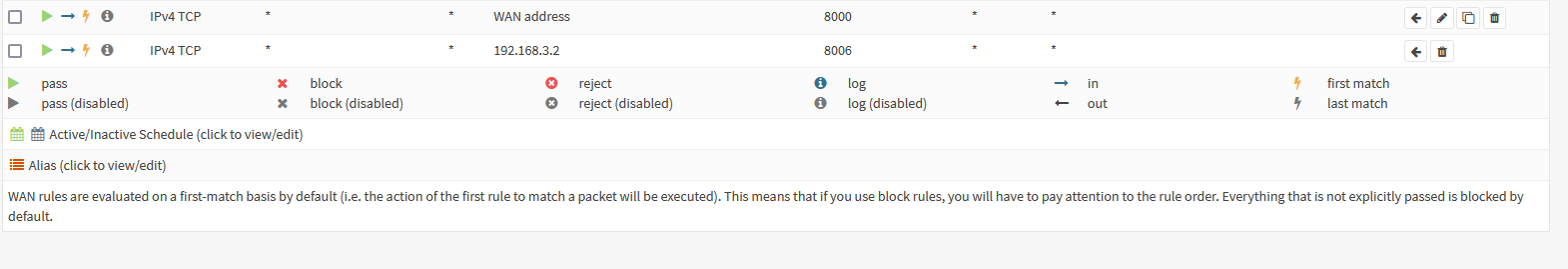

It’s the view on Firewall A Rules: WAN:

Upper rule is created by me, second one automatically created by opnsense.
When I try to access both adresses via WAN, I get timeout.

Packet capture on tunnel interface on firewall B:
