Hi All,
Having a hard time finding good info regarding this question/issue. Sorry for the long post.
The application here is for entertainment/concert lighting. I have a netgate router and a number of unifi and HP switches. The lighting controllers and a number of control output boxes are connected on vlan 11. Any show related devices need to have manually set static IP’s. The system need to be self sufficient without a router present.

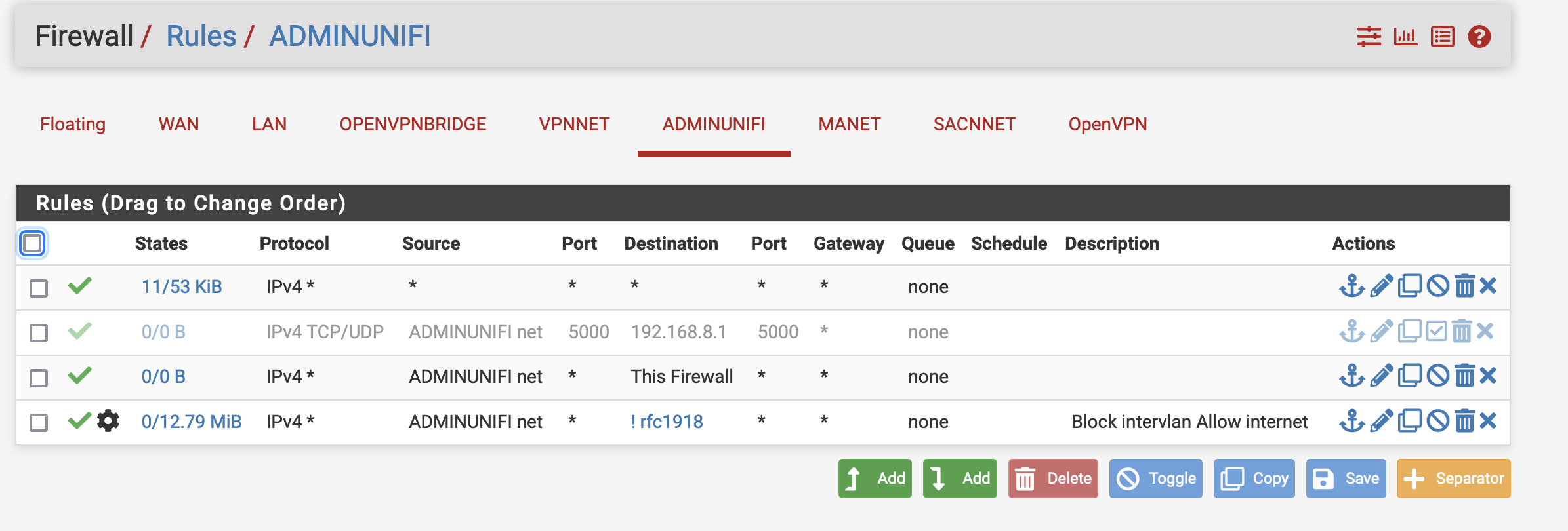

I’m using vlan 9 as admin for the unifi/netgate gear and for internet. For testing purposes I have set up all to all rules on both vlan 9 and 11. (currently nothing plugged into the WAN)
I’m trying to access some of the show related devices on vlan 11 from vlan 9. From my laptop (on Vlan9), I can ping only DHCP addresses, not any of the manually set IP’s on Vlan 11. I have set correct ip’s sumbnet masks and gateway info.
With my laptop on Vlan 11, I can ping all devices dhcp or manual IP’s.
Setting reservations for the manual IP’s on the DHCP page does not change anything.
Clearly I’m missing something? Am i trying to do something that is not possible?

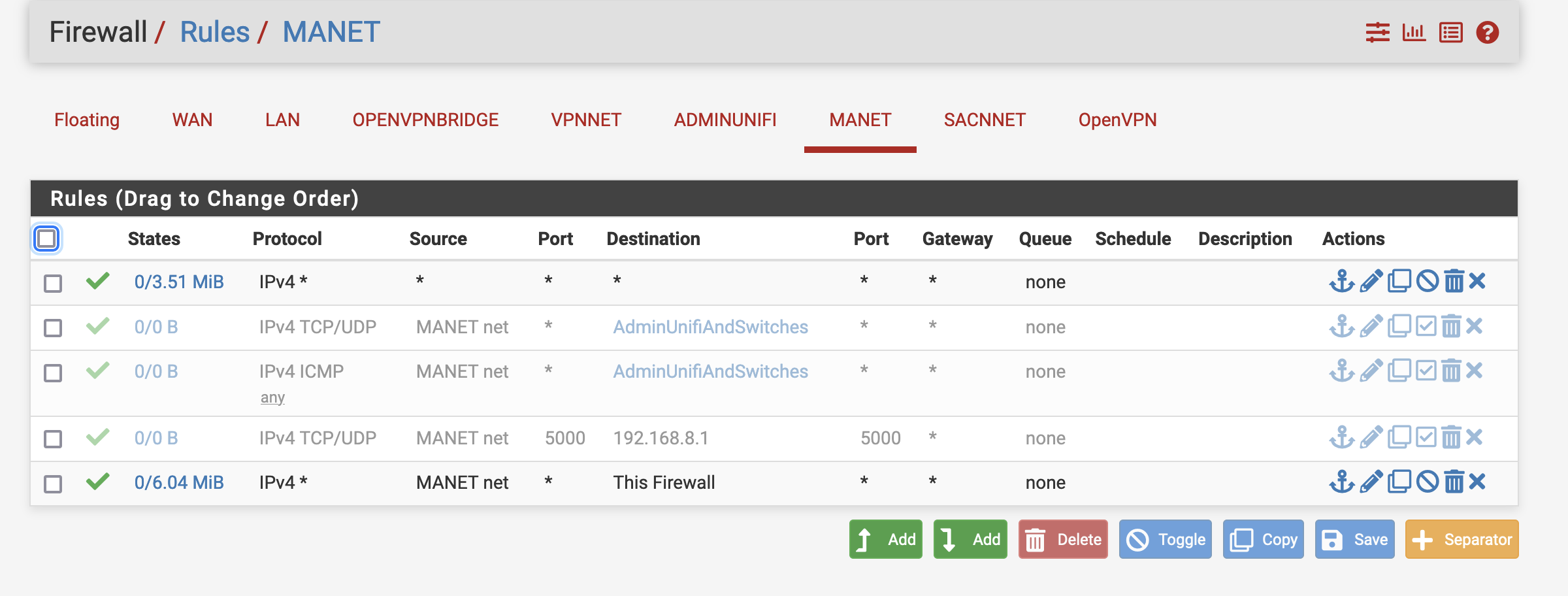

FYI the rules on vlan 11 are set to allow access to my cloud key, and HP switches which are also all set with manual/static IPs. I can ping all those just fine from vlan 11 to 9…
Thanks for any replies,
-Erik
