pfSense & HAPROXY redirection to specific subdirectory on specific port

Networking & Firewalls
1

hello all,

i’m looking for help plz in configuring my following scenario on pfsens with HAProxy.
now, i’m running my domain1 with acme ssl & using HAProxy,
h ttps://domain1:443 ==> h ttp://192.168.1.13:80
everything is fine and the domain1 is working on https.

now, i need to run an new service on the same domain1 on port 8080 to a specific path:
http://192.168.1.13.com:8080/subfolder1/subfolder2

from outside, the users will request the new service on:
h ttps://domain1.com (on 443 of course)

i have prepared another domain name (domain2.com) trying to run the above scenario…got blue and nothing worked with me to run the new service on another port with a specific path…!!

can i find help here :frowning:

thanks in advanced.

2

I believe you will need to add the following into the backend section under Backend pass thru

http-request set-path subfolder1/subfolder2%[path]

1 Like
3

indeed, i guess, i miss something in settings the http-request set-path at BackEnd !!
special with port !

4

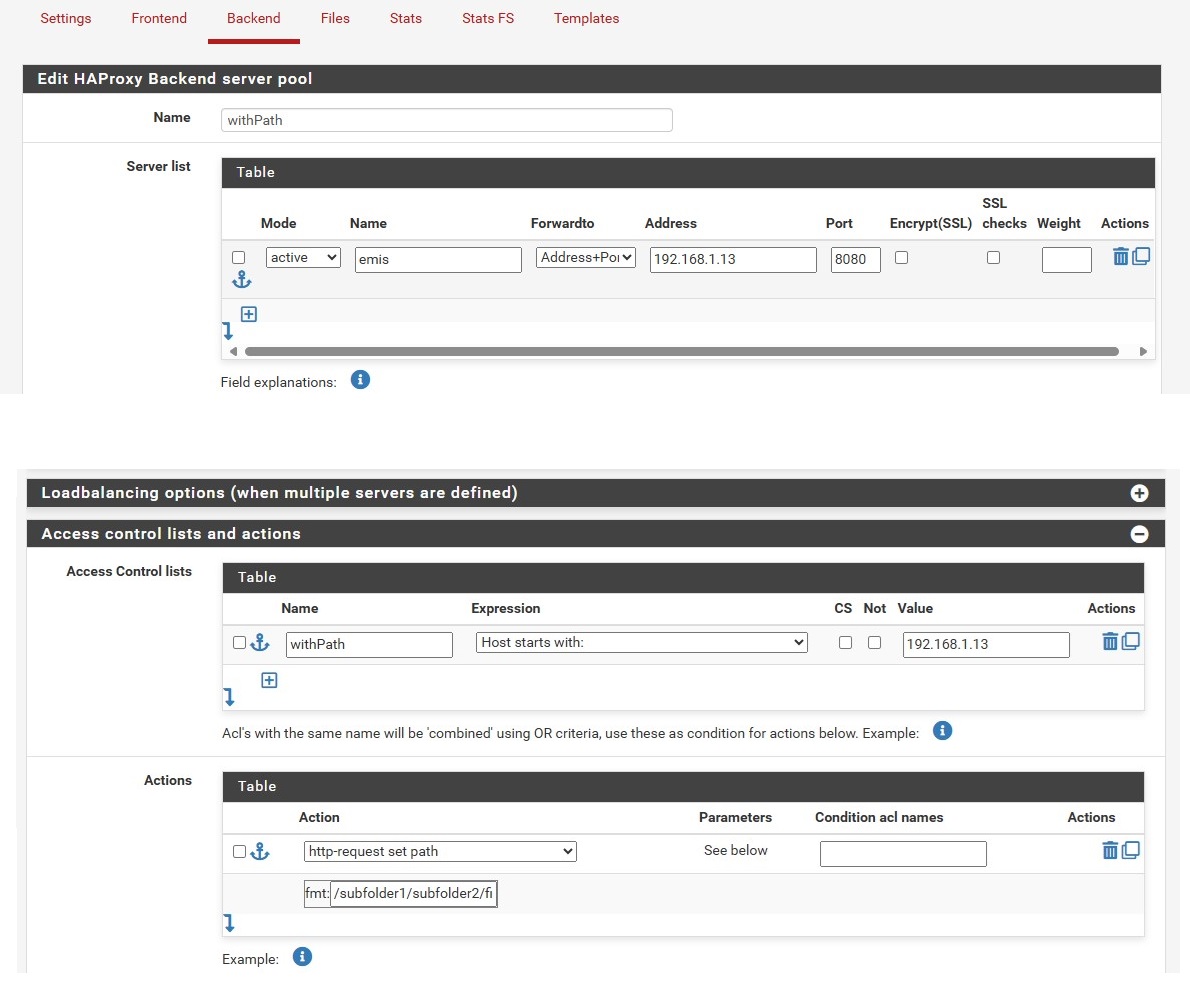

a screenshot of my BackEnd fonfig. :

haproxy1
haproxy11190×983 144 KB

something i did wring in my backend settings in here !

5

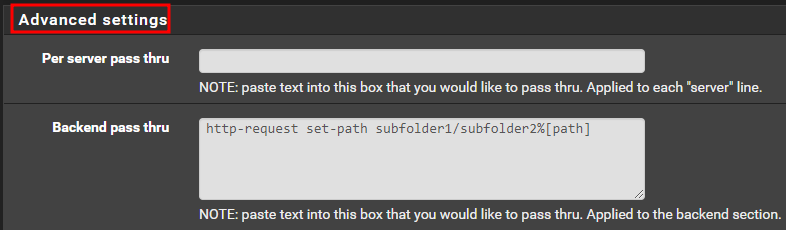

No, as I mentioned above you need to set this under the Backend pass through section under advanced.

image786×230 12.8 KB

1 Like
6

thanks a lot xMAXIMUSx for your reply & help, appreciate it dude :slight_smile:

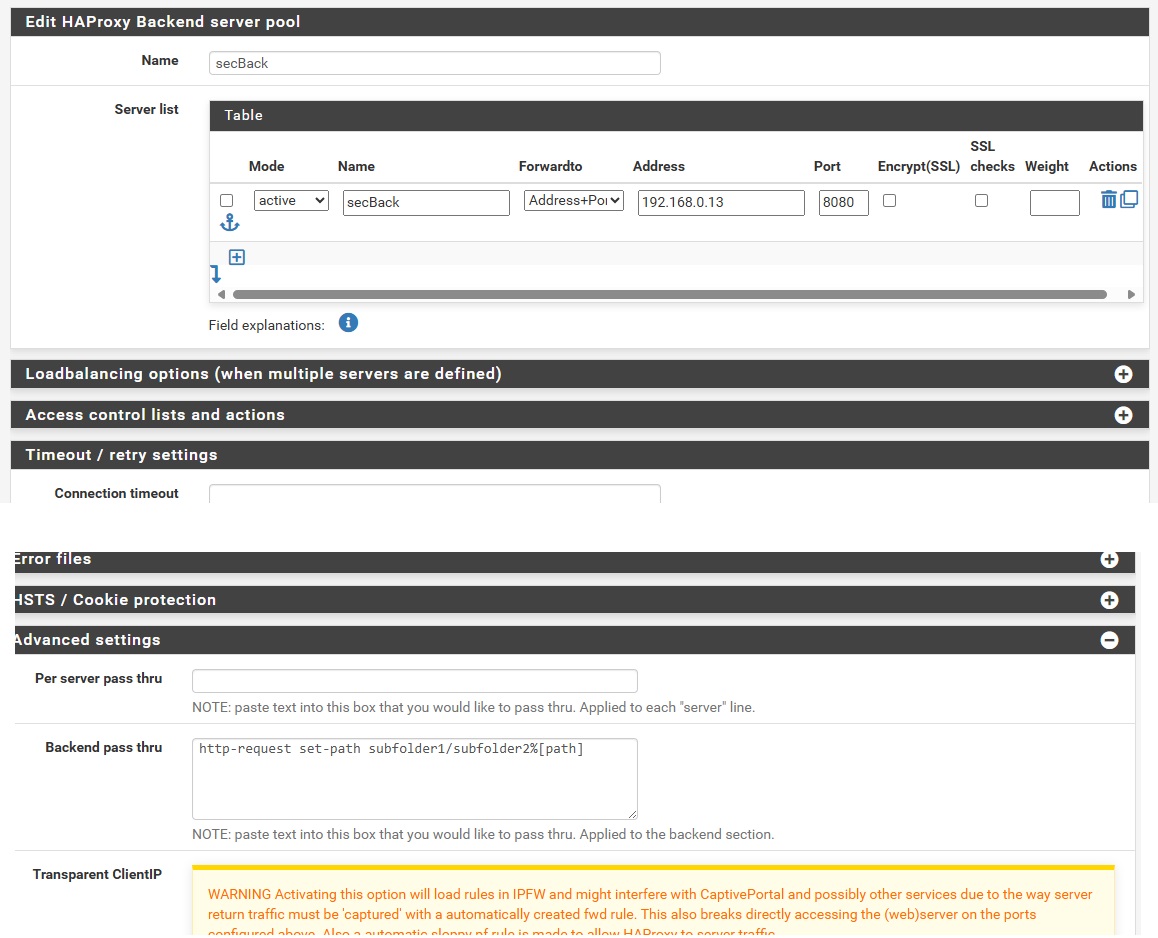

i did what you mentioned above, as following:

haproxy3
haproxy31158×938 165 KB

my server 192.168.0.13 runs on port 80 for the main website.
what i need to do is to run a new service on the same server, BUT, on port 8080 to a specific path as following:
http://192.168.1.13.com:8080/subfolder1/subfolder2
the pathe of the new service above is working fine locally, but from out side, still facing troubles with backend settings…

what i missed with my settings??!!

appreciate your hepl

7

i do really appreciate your help :+1: :blush:
finally it worked for me.
my problem was in the port 8080 with TomCat apache, i just changed the port to 8081, reboot the server, and its worked.

by the way, it’s working on both as Action & Backend pass thru just fine

again, thanks a lot @xMAXIMUSx for your help

2 Likes
