Pfsense and Tailscale site2site

[iLeonard]

Good evening everyone,

I have a quick question about Tailscale and Pfsense.
I have Tailscale running on a Rasperry Pi, which advertises routes into its network (192.168.178.0) now there is a Pfsense, which also has Tailscale running, the Pfsense has a network with 10.0.0.0/16, I now want to go with it Clients that are in this network access the clients that are in the network behind the Pi (192.168.178.0/24)
If I ping e.g. 192.168.178.1 from the Sense, it works, but not if I do it from a client in the 10.0.0.0 network.

For me this means a routing problem,
Do I now have to set a route on the pfsense so that the clients from the 10.0.0.0 subnet can communicate with the clients in the 192.168.178.0/24 network?

Best regards

[elvisimprsntr]

This is the tutorial I followed for StS Tailscale between two pfSense nodes. Make sure to watch all the way to the end as Christian McDonald throws in a few tidbits near the end. There is likely something you are not replicating on the RPI end.

Tailscale on pfSense Software!.

The pfSense StS implementation works automatically!

[iLeonard]

Hi Elvis,

thank you, Im now on the right way, but I have one thing, that is strange on my pfsense.

I try to add a outbound nat rule, but Im not able to select Tailscale as the translation interface, is there a bug or do you know a workaround for this case?
Or did I miss something?

Kind regards Leonard

[elvisimprsntr]

Might be a bug. I originally set up TS under 2.7.0

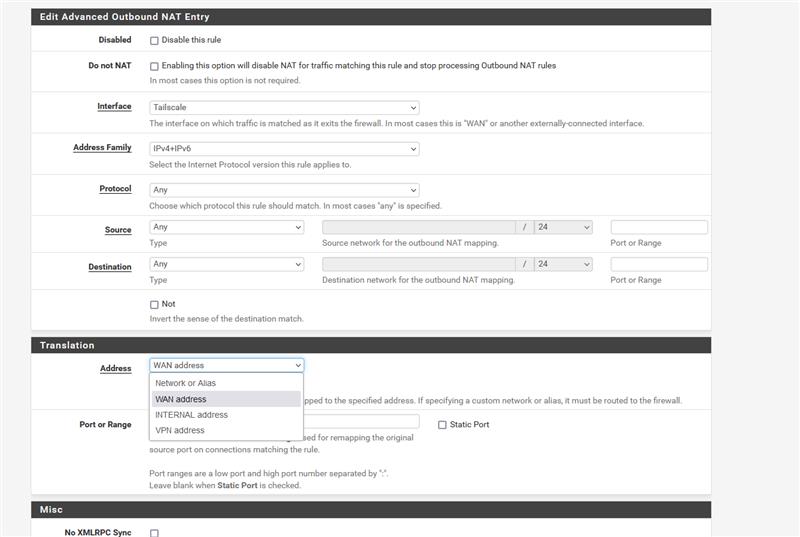

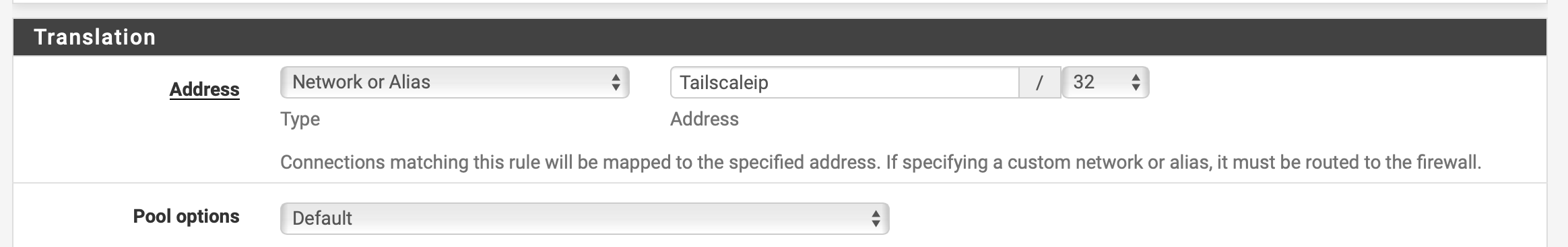

When I edit my outbound rule, it looks like this.
