Isolated Network: Howto Configure a Lab Network with VLANs?

Networking & Firewalls
1

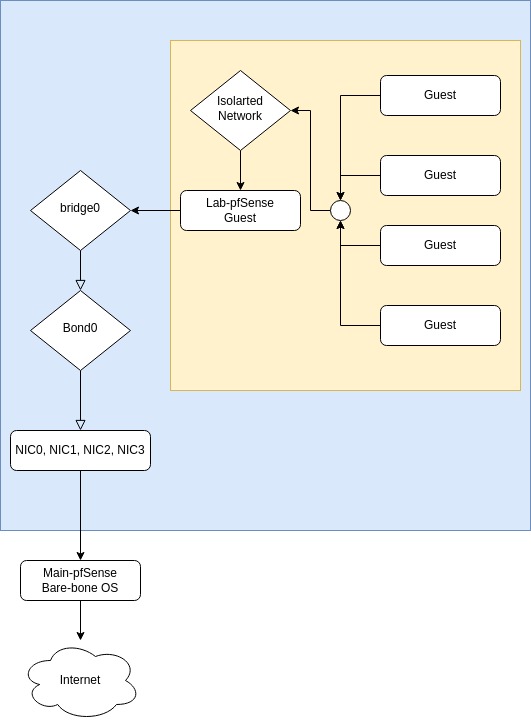

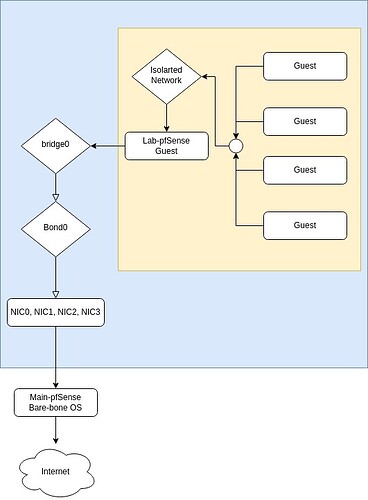

Bond0 Diagram
Bond0 Diagram531×721 37.8 KB

Afternoon, above is my VM Lab-Network on my Lab Server. I want to create a real case scenario Network for testing before implementing it on my Production Server / VM Production-Network and the Main-pfSense Box.

I will be using pfSense baseline guide with VPN, Guest and VLAN support on all pfSense OS. As I learn new techniques, I want to test them first in the Lab to Production to Main.

Can anyone link me to an article(s) that will show me how to properly create the VLAN’s on the Lab-Network?

Thanks!..

2

Have you searched the LTS YouTube channel? I could swear there is a video on exactly this

1 Like
3

Not yet, but I will give it a try…

4

I have a full video on building a lab that might help.

1 Like
