Cloudflare DNS proxy to server issue

Networking & Firewalls
1

Im not sure how to phrase this… Basically, I have a Cloudflare DNS using their proxy. I made some NATing rule through my pFsense to the server on the DMZ. This works, however when i try to use a UDP service, obviously Cloudflare proxy doesnt support it. So when I turn off the DNS proxy, the DNS link go into my pfsense webgui instead of the server on the DMZ…

Why does it do this and how to I resolve it?

2

Move the pfsense web GUI to another port.

3

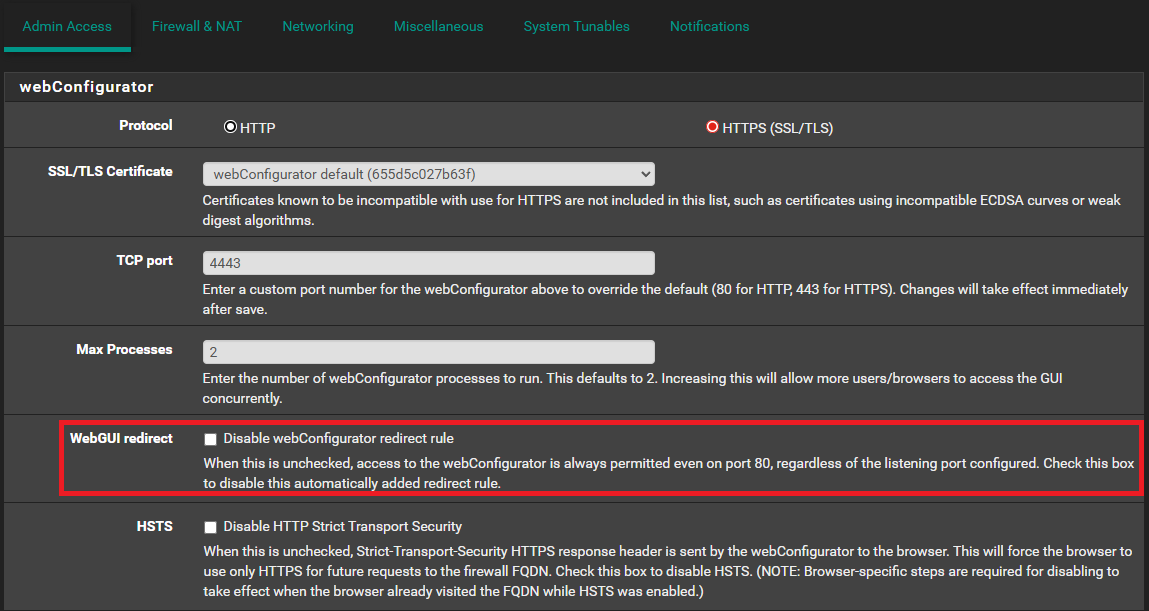

Thank. I think i did that yesterday but i was getting the same issue, but not right now… Now to disable port 80 to from accessing the pfsense webgui, do i just need to check “Disable webConfigurator redirect rule”?

Thanks.

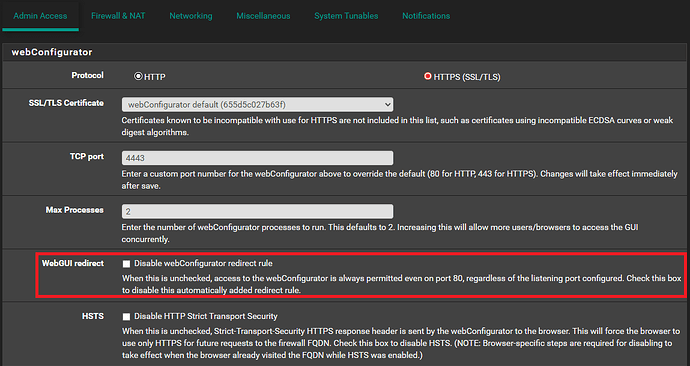

image1149×611 53.6 KB

4

Yes, also turn off the web redirection.

5

Thanks. That seem to work better.. I think that is one issue resolved now moving onto another following issue…………

1 Like
