pfSense DNS redirecting https to insecure http sites

Networking & Firewalls
1

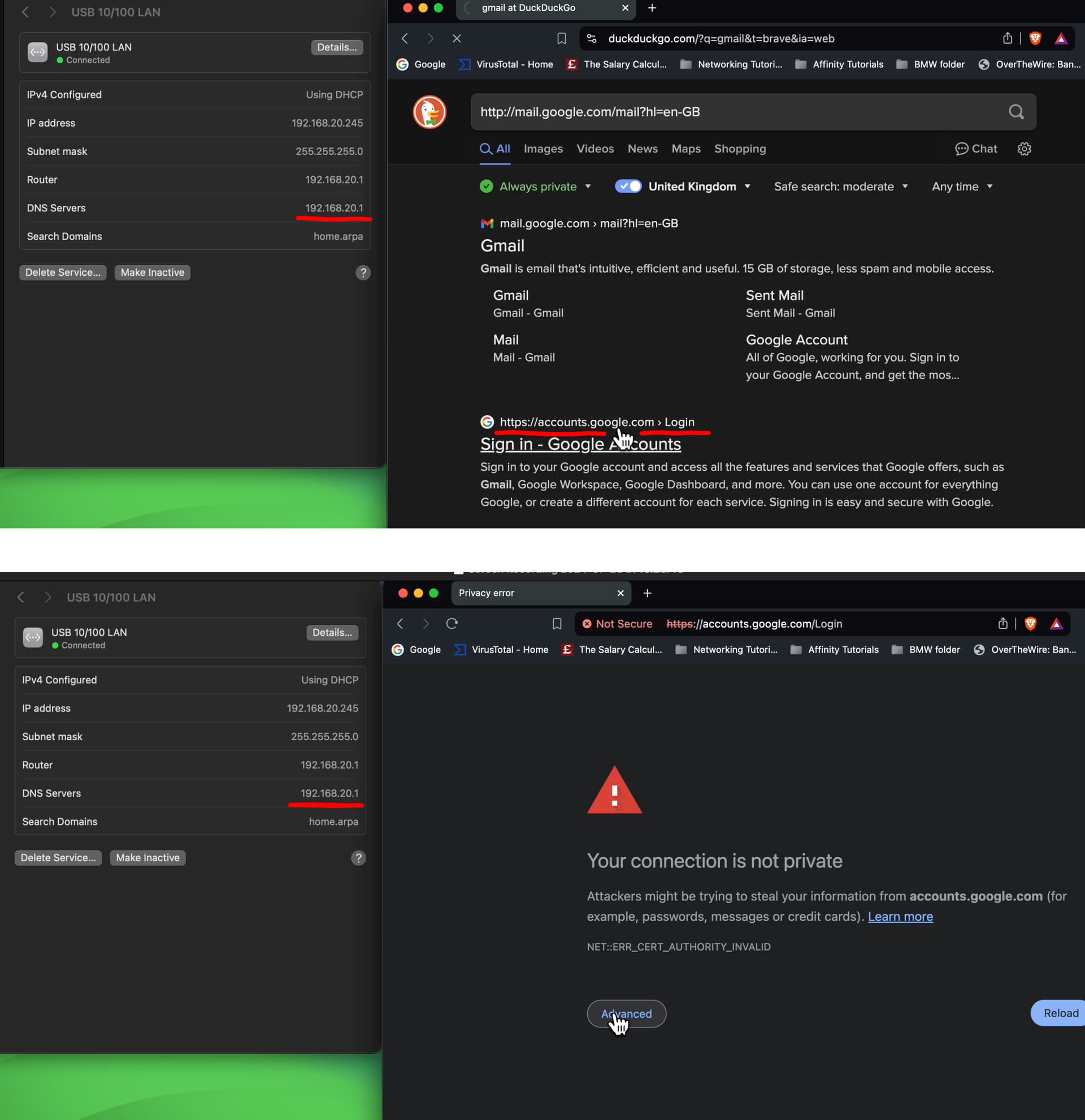

I have the latest pfSense CE installed running on a small PC connected to a Netgear 8 port switch. I’ve setup DNS over TLS following Lawrence Systems Youtube tutorial and every seemed fine. The other day whilst browsing online, I noticed that my search engine results would display a link to a HTTPS site but when I click the link my browser blocks me with a warning because I have been redirected to the insecure HTTP site. I did a test on different computers, different browsers etc and I am getting the same result. Below is a screen shot I took. On the left shows the gateway of the switch and the right shows the search result link clearly displays HTTPS but the image below shows the redirected page.

pic1and2
pic1and21920×1982 162 KB

Once clicked I’m clearly redirected to the insecure HTTP site. :thinking:
Does anyone have an idea why this is happening? Could my switch have been compromised and it’s highjacking my DNS?

2

DNS does not cause site redirects, that is a browser function. Check your plugins & browser settings.

3

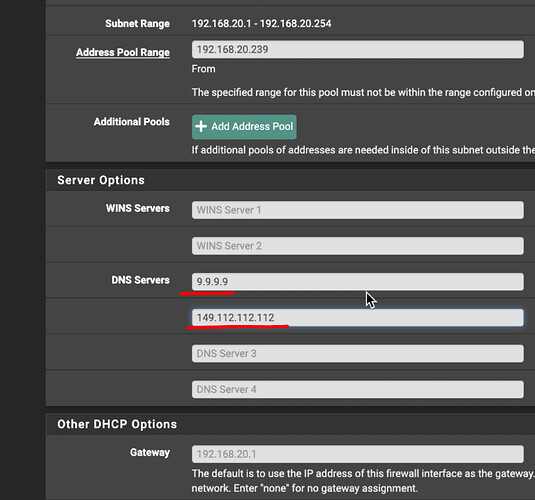

Well the strange thing is, I then logged back into pfSense and in each DHCP server under settings - server options - DNS Servers, I typed in the DNS servers manually and then the links worked fine.

pic3
pic31822×1702 205 KB

P.S. Tom, your pfSense videos have helped me a lot, keep up great work! :+1:

4

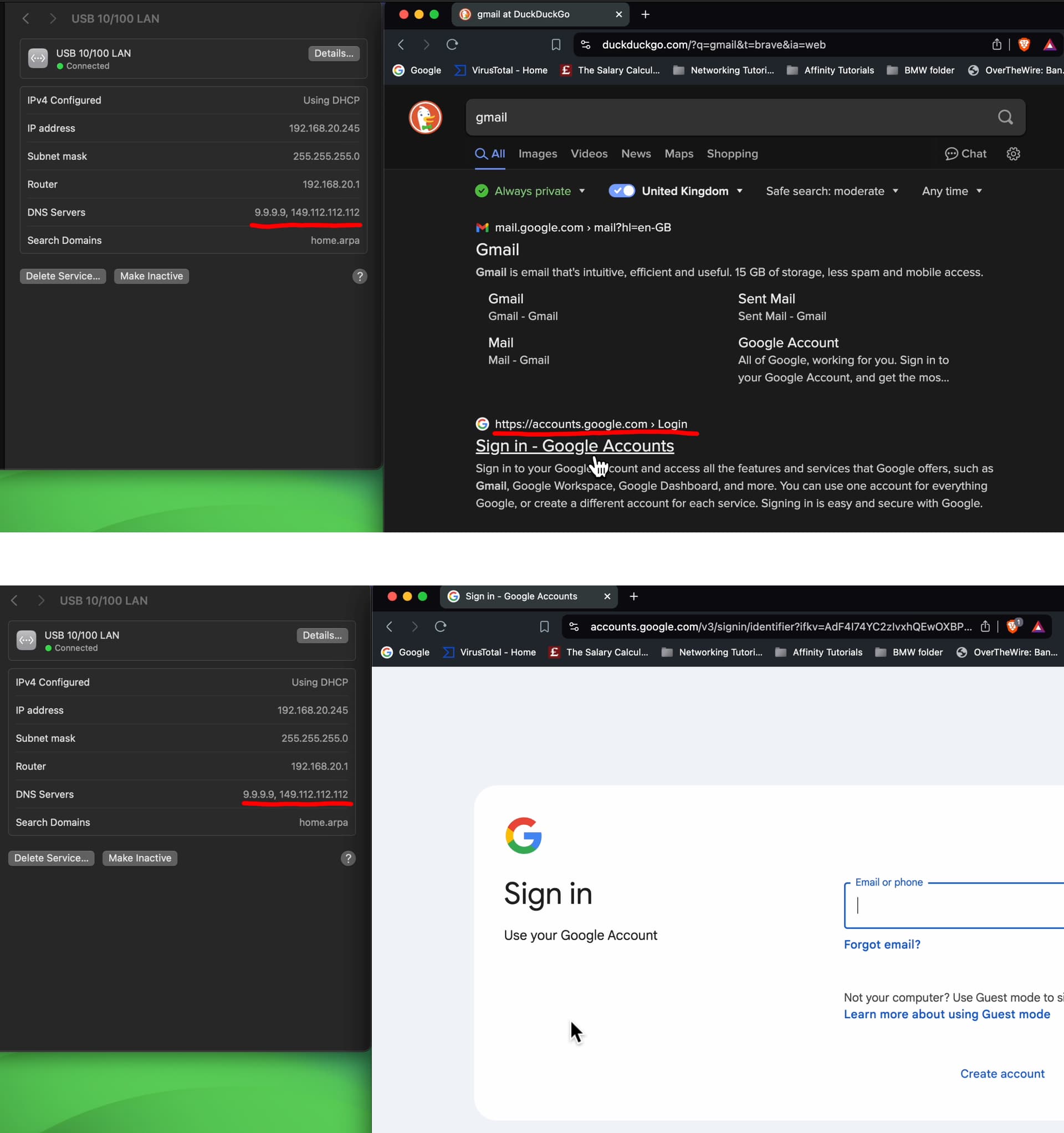

Below shows on the left, the DNS settings updated on my Mac from pfSense and the right shows the the links now working correctly.

pic4and5
pic4and51920×2044 166 KB
