Jun 8 19:57:39 BSNL_252849 Default deny rule IPv4 (1000000103) 152.x.x.x:62443 59.x.x.x:5160 UDP
So this is the error i am getting when trying to connect to my freepbx server from remote location
for understanding
i have 4 WAN connections
3 from ISP A (bridge mode) with dynamic public IP
1 from ISP B (double NAT)
ISP A
First WAN connection is through a USB to RJ45 connection
second and third WAN connection are via VLAN
have put firewall and NAT rules for all three WAN connections same.
have created a gateway group with different tiers.
I am able to connect to the PBX server remotely when on WAN1 (USB) but when i try to connect via WAN2 and WAN3 , i get the 103 error.
have TPLINK OMADA managed 24 port switch.
I am able to access HAproxy webservices remotely using WAN2 and WAN3
So , i guess there has to be something in the VLAN setup that is screwing things up.
any help or ideas??

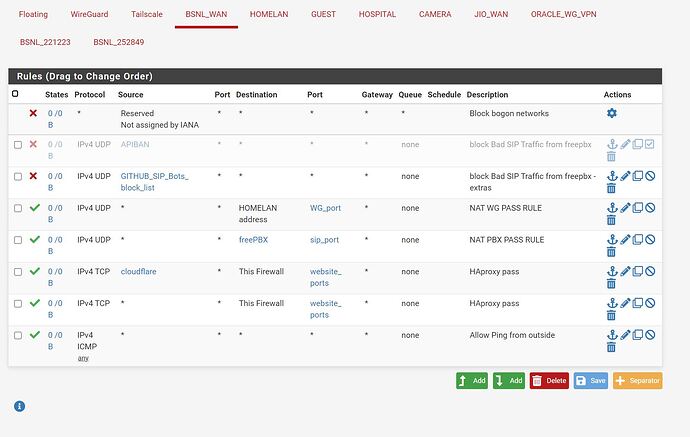

WAN1

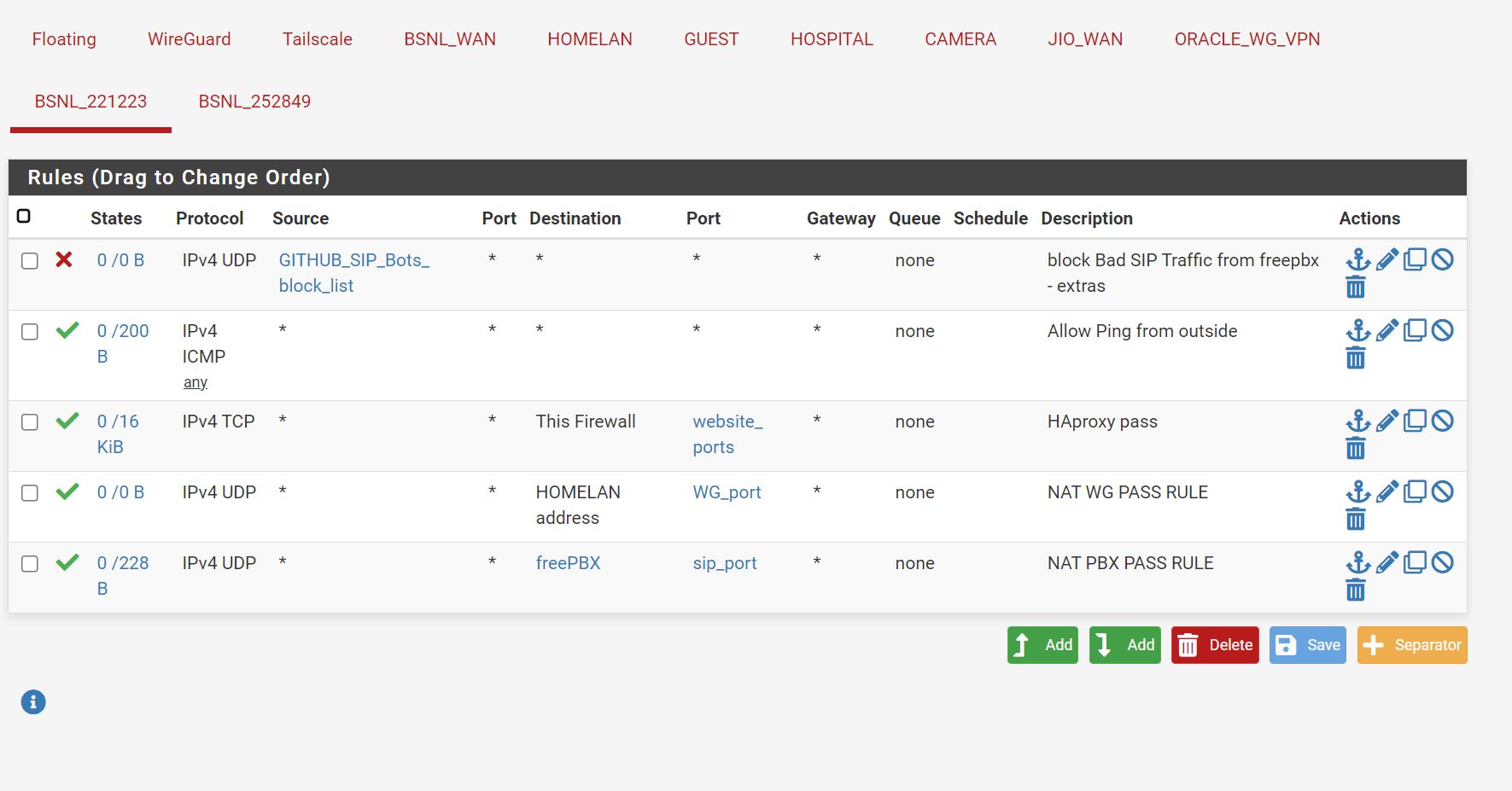

WAN2

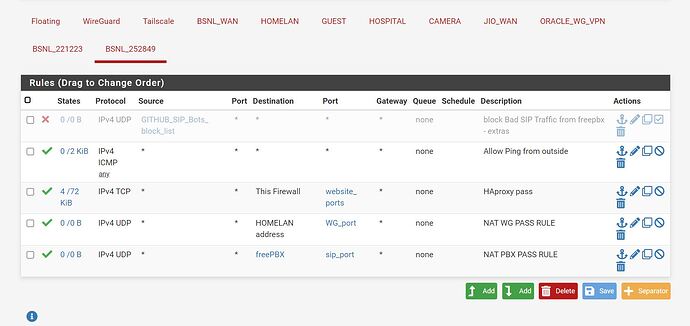

WAN3

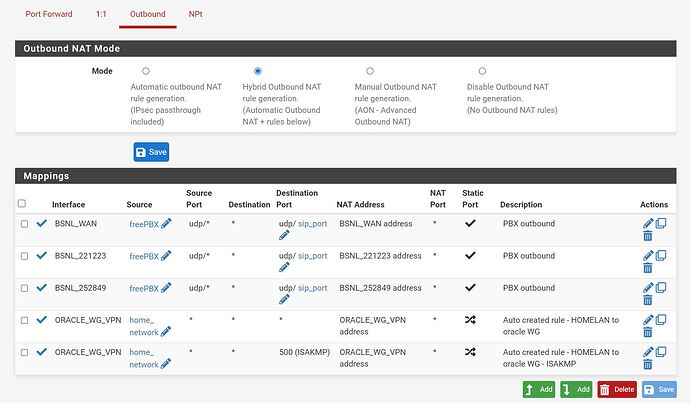

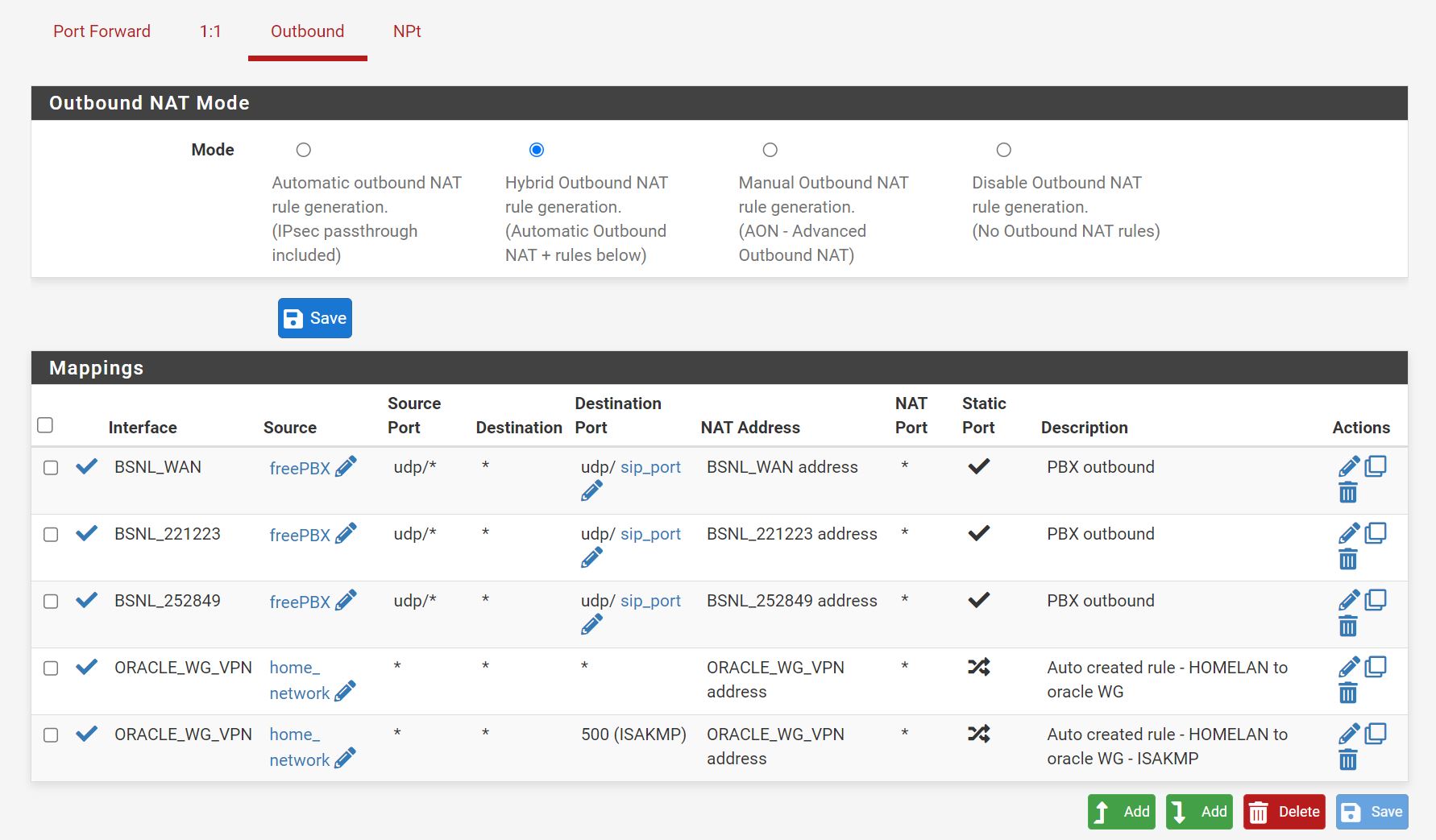

NAT settings
